Ventilatori assiali Savio Clima

SI – SIR

PERFORMANCE
Pressure range (mBar): 0 ÷ 16
Flow rate range (m3/h): 240 ÷ 150.000
Max. inlet fluid temperature (°C): 60°C
CONSTRUCTION
Impeller type: With aluminium alloy or resin blades
Fan casing: Conveyance casing made of high thickness sheet steel
Execution: Direct drive
Finish: RAL 7038 standard painting

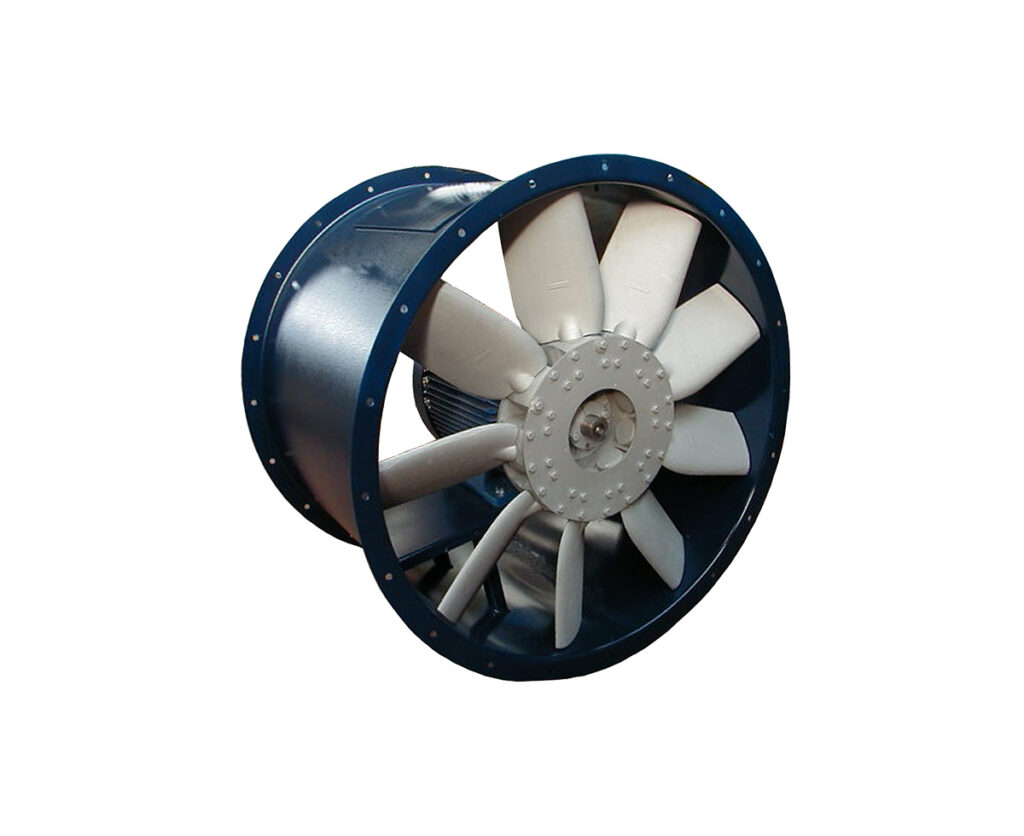

SI and SIR axial fans are high-efficiency fans for high flow rates at low pressure, with adjustable aluminium-alloy blades, built by SAVIO in Italy since 1945. Flow rates up to 150,000 m³/h. Available in ATEX version up to zone 1/21.

FLUID:

Suitable for clean or slightly dusty air, up to +60 °C.

TYPICAL APPLICATIONS:

Used in industrial ventilation of large spaces, cooling, evaporative towers, air extraction from industrial buildings and high-flow aeration systems.

Power Generation application? See our dedicated page: Axial Fans for Genset Cooling — radiator and charge-air cooler cooling for natural gas generator sets in data centers.

Do you have a specific application?

Our technical department is available to help you choose the most suitable solution — from sizing to delivery.

Request a quote for SI – SIR

Tell us about the application or attach a technical specification, a data sheet or a drawing: we will get back to you with a proposal.
