Pressure range (mBar): 0 ÷ 16
Flow rate range (m3/h) 240 ÷ 150.000
Max. inlet fluid temperature (°C): 60°C
Impeller type: With aluminium alloy or resin blades

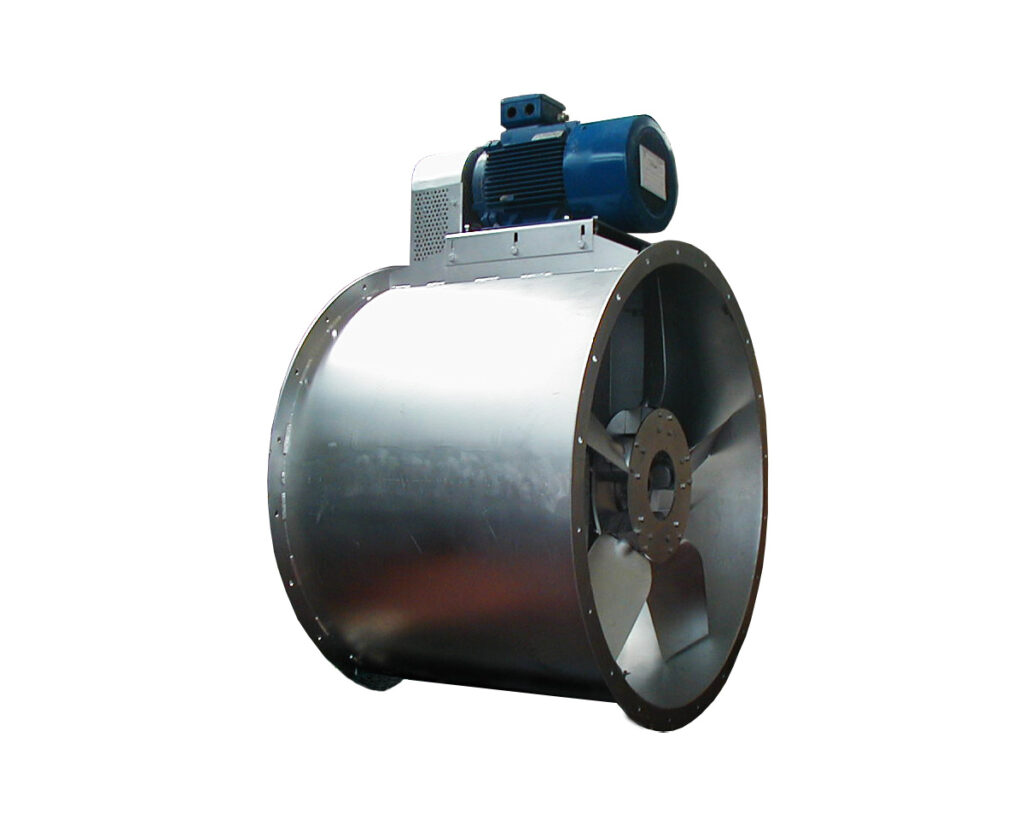

Fan casing: Conveyance casing made of high thickness sheet steel
Execution: Direct drive
Finish: RAL 7038 standard painting

Long fan casing equipped with double flange.
Motor positioned outside the air flow.
Equipped with inspection door.
On request they can be manufactured in ATEX version up to zone 1 /21.


Fans suitable to be ducted; they are used in suction, drying, air conditioning, tunnel and gallery ventilation systems.
